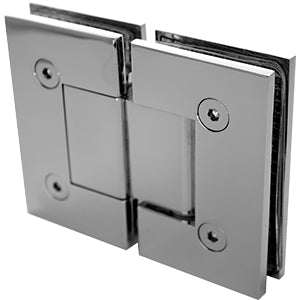

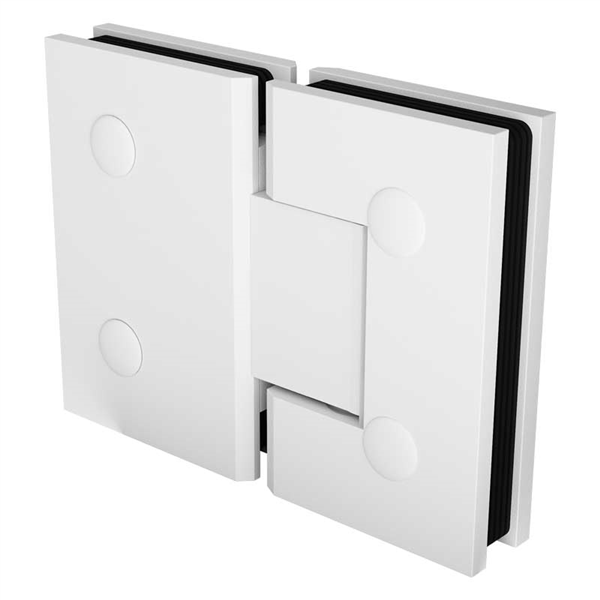

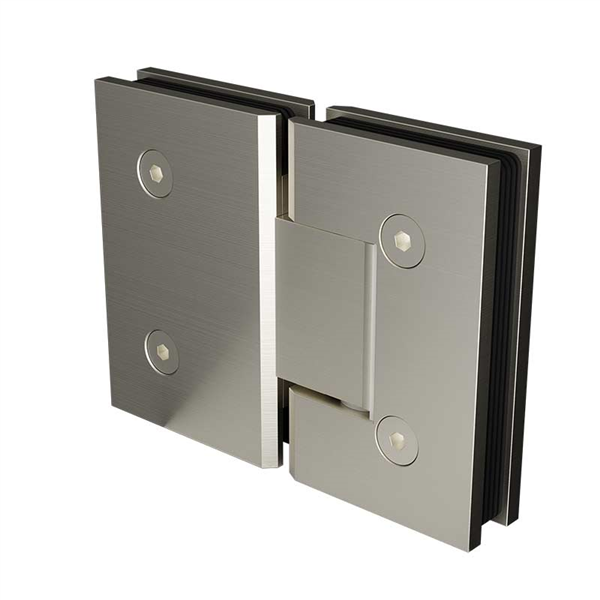

Glass to Glass Hinge

• Square finish edges
• Suitable for 8mm and 10mm glass
• "D" style glass cutouts
• Self closing from approximately 25°
• Dual action – opens inwards and outwards

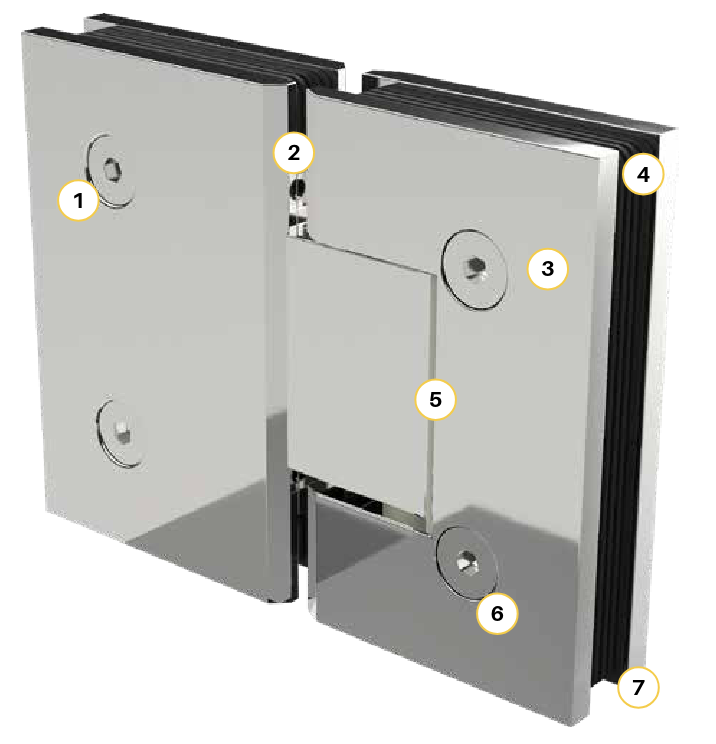

1) Optimised hinge plate - Hinge plate hole distance optimised for maximum clamping action

2) Grub screws secured with Loctite - For precaution, Loctite is used to secure threaded grub screws

3) Allen key head screws - For ease of installation and to minimise scratching caused by flat head screwdrivers, allen key head screws are used

4) Superior quality EPDM gaskets - Gaskets are pre-glued to the hinges and overlapping plates for easy installation

5) Scratch protectors - Neatly positioned protectors to prevent issues when hinge opens and closes

6) Knurled back screws - Advantage of superior locking action to prevent screws working loose

7) Clamping plate - Recessed clamping plate ensures perfect fit to hinge body
